Sichten

The program Sichten.exe is made to consider raster image files or vector files how are generated, for example, with the program Famulus.exe.

File

sichten_e01
Ras/Vec File
Connect of a ras or vec file.
Rec File
Connect of a clasifier file. The recognition results will then be displayed in addition for each character.
Close Rec file
Exit
Exit
Close Sichten.

After loading a raster image or a vector file, the individual images can now be displayed and scrolled in the file. But there is still no editing possible. For this, the editing must still be activated.

Edit

sichten_e02
Unicode
The labels are displayed in the active window in Unicode.
ASCII
The labels are displayed in the active window in ASCII including ersatz labels.
Unicode Hex
The labels are displayed in the active window in Unicode hexadecimal, for example 0041 for the large A.
Number
The program goes to a image with the entered number.
Search
The program searches for an entered label and jumps to this position.
Previous Position
The program returns to the previous position.

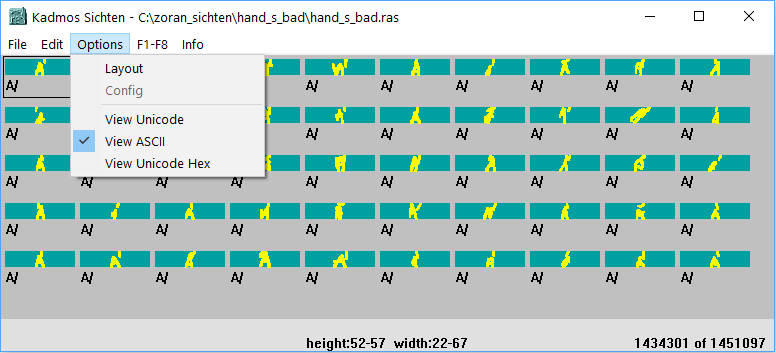

Options

sichten_e03
Layout
Opens a window to change the layout.
Config
Opens the configuration menu. 🖙 🗏
Unicode
The labels are displayed in the inactive windows in Unicode.
ASCII
The labels are displayed in the inactive windows in ASCII dargestellt.
Unicode Hex
The labels are displayed in the inactive windows in Unicode Hexadezimal dargestellt, z.B 0041 für das grosse A.

Screen layout

sichten_d03a
Images vertikal
Number of images to be displayed per column.
Images horizontal
Number of images to be displayed per line.
Images distance
Width between the character, in pixels.
Zoom (max=8)
Display size of the images.
Edierbild-Zoom (max=8)
Display size of the image in the editing window.

F1 - F8

sichten_e04

Unicode

sichten_e04a
F1 - F8
Here, the function keys F1 to F8 can be used to repabel the characters for Unicode. For example, is the input for the character handwriting À the assignment À_.

ASCII

sichten_e04b
F1 - F8
Here, the function keys F1 to F8 can be used to repabel the characters for ASCII. For example, the input for the character handwriting À is the assignment A).

Unicode Hex

sichten_e04c
F1 - F8
Here, the function keys F1 to F8 can be used to repabel the characters for Unicode Hex. For example, the input for the character handwriting À is the assignment 00CD_.
