Configuration

In the config (reconfig) menu a lot of parameters can be set to optimize the recognition result. It is used from programs like Famulus.

Classifier configuration

Max. grid len

Setting the maximum occurring grid elements. 🖙 rel_grid_maxlen 🗏

Max. graph len

Setting how many graph elements should be returned. 🖙 rel_graph_maxlen 🗏

Max. resul len

The maximum of desired results. 🖙 rel_result_maxlen 🗏

◻ Preprocessing only

Setting if only the pre-processing is desired. 🖙 GENERAL_PREP_ONLY 🗏

◻ Line shadow only

Test for each pixel column about whether a sign exists and whether it is hand or typewritten. 🖙 GENERAL_LINESHADOW_ONLY 🗏

◻ Hook engine loaded

A hook engine is used. 🖙 GENERAL_HOOKENGINE_LOADED 🗏

◻ Hook engine aktive

On and off a loaded Hook Engine. 🖙 GENERAL_HOOKENGINE_ON 🗏

◻ REP Multithreading

Multithreading on and off. 🖙 GENERAL_MULTITHREADING 🗏

◻ KADMOS server version

Server version on and off. 🖙 GENERAL_REPMULTITHREADING 🗏

Preprocessing

Open the window for setting the pre-processing parameter.

Segmentation

Open the window for setting the segmentation parameter.

Classification

Open the window for setting the classification parameter.

Context

Open the window for setting the context parameter.

◻ REL_REC_REPEAT

After the first detection, a second modified one will be started. 🗏

◻ REL_REC_CLEAR

This parameter is intended to support the reading of standard font lines, such as CMC7 or E13b. 🗏

Save in ..

Open the window to save the set parameters in an ini file.

Restore from ..

Open the window to load an existing ini file.

  OK

Accept the parameter setting and close the configuration window.

Cancel

Accept not the parameter setting and close the configuration window.

Preprocessing

Color processing

Convert color images to gray images. 🖙 PREP_RGBTOGRAY_COLOR* 🗏

Gray to binary image

Convert gray images to black and white images. 🖙 PREP_GRAYTOBIN_* 🗏

Binary filter

Frayed characters are thickened or thinned and smoothed. 🖙 PREP_BINFILTER_* 🗏

Noise reduction (%), Noise reduction (pixel)

Settings for noise reduction. 🖙 noise_diameter_* 🗏

Grid box detection

New opens the window to set new parameters for grid and box detection. When parameters set, edit can be used to change it. Delete reset the settings.

◻ Auto noise reduction

Auto noise reduction on and off. 🖙 PREP_AUTO_NOISEREDUCTION 🗏

◻ Spot removel

Spot removel on and off. 🖙 PREP_NOSPOTREMOVAL 🗏

◻ Fast grid detection

Enables faster grid removal. 🖙 OPTIONS_FAST_GRID 🗏

◻ Deskew image

Image deskew on or off. 🖙 image_deskewed 🗏

◻ Scaling

Transform images to 300 dpi. 🖙 PREP_SCALING 🗏

Grid & box detection

Type

Choosing what kind of elements are to be detected, Horizontal or vertical lines, boxes, or combs. 🖙 GRID_*🗏

Size

The size of the element can be set. Is a element selected the minimum size has to be set. 🖙 RelGridParm 🗏

Structure of boxes or combs

The value of sub-elements of an element can be set. 🖙 RelGridParm 🗏

Search area (in pixel)

The parameter for the search area can be set. 🖙 RelGridParm 🗏

Segmentation

Line spacing

The line height and line spacing can be set. For the row height is assumed the Big A as underlying. For the row spacing, the baseline is valid from one text line to the next text line. 🖙 🗏 🗏

Character spacing

It can be set if equidistant, or proportional font is present. Otherwise, a automatic segmentation is used. 🖙 typograph 🗏

Character width

Are the maximum and minimum character spacing is known, this can be defined. 🖙 RecData 🗏

Special methods

More text information can be set. Merged characters or not, is a serif or sans serif font used. The number of alternate segmentation can be set. 🖙 typograph 🗏

Classification

Font selection

The recognizable languages and fonts can be restricted. 🖙 font 🗏

ALC groupe selection

Groups of characters can be switched on and off. 🖙 alc 🗏

Reject limit

The border can be determined, from which no further results be delivered. 🖙 reject_limit 🗏

Reject level

At what value should the result be a rejection. 🖙 reject_level 🗏

Show labels

All active labels are displayed.

Select labels

Open the window for label selection.

Select all groups

AÎÎ available labels can be switched on.

◻ Basic labels parm

Use basic labels or group labels for the recognition. 🖙 OPTIONS_BASICLABELS_PARM 🗏

◻ Strict selection

Parameter to control deselected labels. 🖙 OPTIONS_STRICTSELECT 🗏

◻ Alternatives

Alternative recognition results are used. 🖙 OPTIONS_EXCLUDE 🗏

◻ Basic labels result

Use for the results basic labels. 🖙 OPTIONS_BASICLABELS_RESULT 🗏

◻ Fast recognition

Use for the recognition a faster method. 🖙 OPTIONS_FAST* 🗏

Context

Character position

How strong should the character position influence the recognition result. 🖙 POS_* 🗏

◻ Word context

Is the word context active, strings only with numbers, only with uppercase, or only with lowercase (possibly large at the beginning) are preferred to mixed strings. 🖙 POS_* 🗏

Dictionary1, Dictionary2
Compound words

Confirm compound words, even if only the contained words are included in the dictionary.

Max length of legal

Words with more characters than specified are not searched in the dictionary. 🖙 ReSpellInit 🗏

rel_repeat

If a word is not found in the dictionary, this part of the image is again recognized with rel_do() and slightly different parameters. 🖙 ReSpellData 🗏

Font

Open the windows Font selection dictionary to restrict the dictionary.

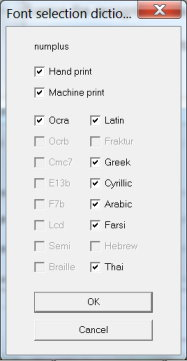

Font selection

A window font-selection words ... will be opened. Here the dictionary can be restricted. 🖙 font 🗏
